Gentics CMS-OSS Documentation

Chapters

1. General description

2. Usage

3. Resolving

4. Helpers

   • Built-in Helpers

   • Conditional Helpers

   • String Helpers

   • Additional Helpers

   • Custom helpers

5. Partials

6. Differences to Velocity

1 General description

The CMS uses the handlebars.java implementation of Handlebars.

For a general introduction to the Handlebars templating language, see the Handlebars Guides.

2 Usage

To render a Handlebars template, you only need to add a “Handlebars” part to a tagtype. The part will use its own input as template.

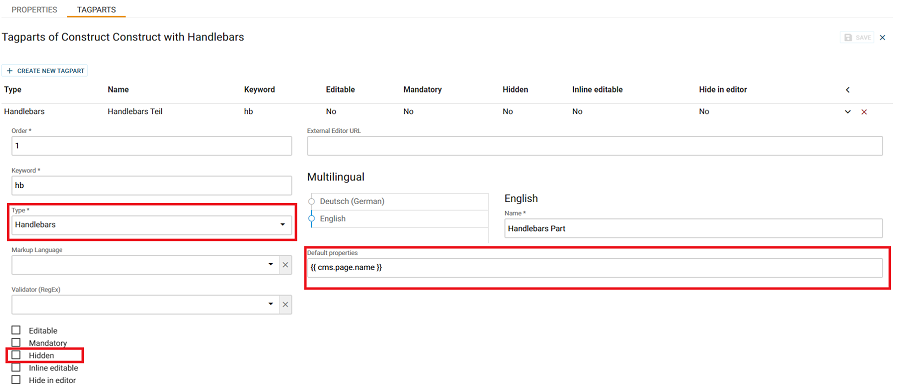

Below is an example of a construct with a single “Handlebars” part, that is not hidden and will render the template {{ cms.page.name }} (which will output the current page’s name).

3 Resolving

The context of a rendered Handlebars part will always contain the base object cms which can be used to resolve some base objects:

• cms.node resolves to the node of the currently rendered object.
• cms.folder resolves to the folder of the currently rendered object (or the rendered folder).
• cms.page resolves to the currently rendered page (if the tag is rendered in a page).
• cms.template resolves to the template of the currently rendered page (of the tag is rendered in a page).
• cms.file resolves to the currently rendered file/image (of the tag is rendered in a file/image).
• cms.object resolves to the object tags of the currently rendered object.
• cms.rendermode resolves to the rendermode information.

4 Helpers

Since Handlebars templating language itself is completely Logic-less, the Handlebars Part Type provides some helpers for supporting more complex rendering logic:

4.1 Built-in Helpers

All Built-in helpers are supported.

4.2 Conditional Helpers

All Conditional Helpers provided by handlebars.java are supported.

4.3 String Helpers

All String Helpers provided by handlebars.java are supported.

4.4 Additional Helpers

4.4.1 gtx_render

This helper will render the given object (if it is e.g. a tag or a page) or output the String representation of anything else.

General usage is:

{{gtx_render object}}

With the parameters

The helper can also be used in combination with other helpers (conditional helpers for example) like shown in the following example:

{{! Iterate over all subfolders of the current folder }}
{{#each cms.folder.folders}}
  {{! Omit folders, that have the checkbox in the object property "navhidden" checked }}
  {{#neq (gtx_render this.object.navhidden) "1"}}
    {{! Output the name of the folder }}
    {{name}}<br>
  {{/neq}}
{{/each}}

4.4.2 gtx_edit

This helper is a variant of the gtx_render helper, which will render the object in edit mode, if possible.

General usage is:

{{{gtx_edit object}}}

With the parameters

4.4.3 gtx_sort

This helper can be used to sort objects by attributes (or even attribute paths).

General usage is:

{{gtx_sort list sortBy [sortOrder]}}

With the parameters

The gtx_sort helper will in most cases be used together with the each helper:

{{! Iterate over all subfolders of the current folder, sorted by the object property "navsortorder" }}
{{#each (gtx_sort cms.folder.folders "object.navsortorder" "asc")}}
  {{! Omit folders, that have the checkbox in the object property "navhidden" checked }}
  {{#neq (gtx_render this.object.navhidden) "1"}}
    {{! Output the name of the folder and the navsortorder }}
    {{name}} ({{gtx_render object.navsortorder}})<br>
  {{/neq}}
{{/each}}

4.4.4 gtx_channel

This is a block helper, which will switch the rendering scope to the given channel for the block.

General usage is:

{{#gtx_channel node}}
  block
{{/gtx_channel}

With the parameters

The reference to the node/channel can be one of

• local ID of a node/channel
• global ID of a node/channel
• A resolved node/channel object
• Tag part of type “Node”

4.4.5 gtx_gis

This helper will either render a Gentics Image Store URL for a resized image, or – when used for an installation of Gentics Portal | php – a widget that will resize that image.

General usage is:

{{gtx_gis image [width=value] [height=value] [mode=value] [type=value] [crop_width=value] [crop_height=value] [crop_x=value] [crop_y=value]}}

With the parameters

The reference to the image can be one of

• local ID of an image
• global ID of an image
• A resolved image object
• Tag part of type “Image”

For details see Gentics CMS GenticsImageStore.

4.4.6 gtx_form

This helper will include a CMS form into the tag.

General usage is:

{{{gtx_form form [type=value] [previewRoot=value] [showResults=value] [templateContext]=value }}}

or (as block helper)

{{#gtx_form [type=value] [previewRoot=value] [showResults=value] [templateContext]=value}}
{{{this}}}
{{else}}
    no-form-block
{{/gtx_form}}

With the parameters

The reference to the form can be one of

• local ID of a form
• global ID of a form
• A resolved form object
• Tag part of type “Form”

4.4.7 gtx_i18n

This helper can be used to render language specific output (in the language of the current page).

General usage is:

{{gtx_i18n [object] [de=value] [en=value] ... [default=value]}}

With the parameters

Translations given as parameters always take precedence over translations resolved from an optionally given object.

The helper will first try to get the translation for the current page language (if rendered for a page and the page has a language).

Then it will fall back to the remaining languages of the current node (if the node has languages assigned).

Finally it will fall back to “default”.

If no translation is found, it will render nothing.

4.5 Custom helpers

For implementation of custom logic, it is possible to create helpers as Javascript files in devtool packages.

Every .js file located in the directory /cms/packages/[package]/handlebars/helpers/ is interpreted as a handlebars helper.

The name of the file (without extension) defines the name of the helper, which will be prefixed with the packagename to avoid naming conflicts. The file must contain a single JavaScript function (the name of that function does not matter).

For example:

function get_name(obj) {
    return obj.name;
}

will be available as helper implementation_package.get_name and can be used like this:

{{implementation_package.get_name cms.page}}

If an additional options parameter is added at the end of the argument list, Handlebars will automatically fill this parameter with an object giving access to the hash arguments as well as the options.fn() and options.reverse() function. Calling options.fn(ctx) will render the contents of the helper with the given context ctx, and options.reverse(ctx) will render the else block. The name of the options parameter can be chosen freely, but it must be the last parameter in the list. The following example assumes that the given tag has two text parts short_desc and long_desc as well as a checkbox part inline. The helper is supposed to render the tag with the content-block if inline is checked and with the else-block otherwise. To include hash arguments, it will also generate the string containing a title attribute if present:

function render_tag(tag, options) {
    let ctx = {};

    if (options.hash.title) {
        ctx['title'] = ' title="' + encodeURIComponent(options.hash.title) + '"';
    }

    if (tag.parts.inline.checked) {
        ctx['message'] = tag.parts.short_desc.text;

        return options.fn(ctx);
    }

    ctx['message'] = tag.parts.long_desc.text;

    return options.fn(ctx);
}

Usage of the helper:

{{#implementation_package.render_tag cms.tag title='Tag title'}}
    <span{{title}}>{{message}}</span>
{{else}}
    <p{{title}}>{{message}}</p>
{{/implementation_package.render_tag}}

4.5.1 Default package helpers

Currently the only tagtype in the default package that uses Handlebars is the Aloha Page Link Tag which uses the gtx_alohalink helper also contained in the default package. Since helpers must always be prefixed with their respective package names, a custom implementation of the Aloha Page Link Tag requires adding the tag to a custom package, then adding a custom helper for use in the Handlebars part and calling that helper with the package prefix (see the Aloha Page Link Tag guide).

5 Partials

For reusing templates, it is possible to define Partials as files in devtool packages.

Every .hbs file located in the directory /cms/packages/[package]/handlebars/partials/ is interpreted as a handlebars partial.

The name of the file (without extension) defines the name of the partial, which will be prefixed with the packagename to avoid naming conflicts.

For example:

{{ name }}

will be available as partial implementation_package.render_name and can be used like this:

{{> implementation_package.render_name cms.page }}

6 Differences to Velocity

This section will cover some differences between the Velocity PartType and the Handlebars PartType (apart from the obvious difference in templating language syntax), which hopefully will help with migration of implementations.
